RoHs Compliant

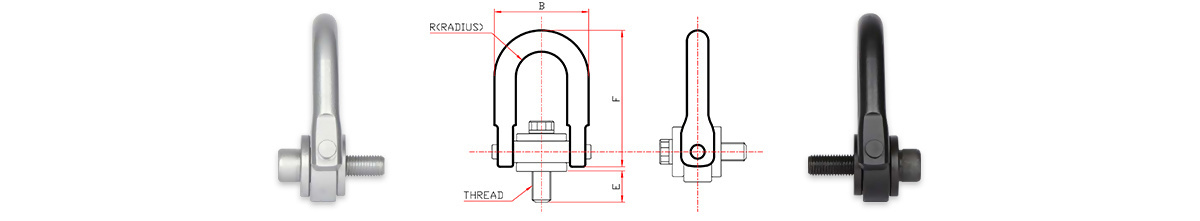

특수도금 밀리미터 표준 U-BAR 호이스트링
| RoHS 특수도금 |
Thread size 나사규격 |
B | E | F | R |
Torque 토르크 (KG/M) |
Weight 제품 중량 (KG) |
||
|
Rated Load 사용하중 (KG) |
Product No. 제품번호 |
||||||||
| 400 | CFM2000NI | M8 * 1.25 | 40.50 | 7.00 | 66.70 | 11.50 | 1.00 | 0.17 | |
| 400 | CFM2001NI | M8 * 1.25 | 40.50 | 15.80 | 66.70 | 11.50 | 1.00 | 0.17 | |
| 500 | CFM2002NI | M10 * 1.50 | 40.50 | 15.80 | 66.70 | 11.50 | 1.50 | 0.17 | |
| 1,050 | CFM2020NI | M12 * 1.75 | 82.60 | 23.30 | 120.65 | 22.23 | 3.70 | 1.08 | |
| 1,050 | CFM2021NI | M12 * 1.75 | 82.60 | 28.30 | 120.65 | 22.23 | 3.70 | 1.09 | |
| 1,900 | CFM2022NI | M16 * 2.00 | 82.60 | 23.30 | 120.65 | 22.23 | 8.40 | 1.12 | |
| 1,900 | CFM2023NI | M16 * 2.00 | 82.60 | 28.30 | 120.65 | 22.23 | 8.40 | 1.13 | |
| 1,900 | CFM2024NI | M16 * 2.00 | 82.60 | 33.30 | 120.65 | 22.23 | 8.40 | 1.14 | |
| 2,150 | CFM2025NI | M20 * 2.50 | 82.60 | 33.30 | 120.65 | 22.23 | 14.00 | 1.19 | |
| 2,150 | CFM2026NI | M20 * 2.50 | 82.60 | 38.30 | 120.65 | 22.23 | 14.00 | 1.20 | |
| 3,000 | CFM2040NI | M20 * 2.50 | 122.20 | 35.80 | 165.10 | 35.72 | 14.00 | 3.03 | |
| 3,000 | CFM2041NI | M20 * 2.50 | 122.20 | 40.80 | 165.10 | 35.72 | 14.00 | 3.03 | |
| 4,200 | CFM2042NI | M24 * 3.00 | 122.20 | 30.80 | 165.10 | 35.72 | 31.00 | 3.10 | |
| 4,200 | CFM2043NI | M24 * 3.00 | 122.20 | 36.00 | 165.10 | 35.72 | 31.00 | 3.12 | |
| 7,000 | CFM2060NI | M30 * 3.50 | 152.40 | 46.00 | 222.25 | 44.45 | 60.00 | 6.30 | |
| 11,000 | CFM2061NI | M36 * 4.00 | 203.20 | 70.00 | 316.70 | 57.15 | 100.00 | 15.50 | |
| 12,500 | CFM2062NI | M42 * 4.50 | 203.20 | 80.00 | 316.70 | 57.15 | 100.00 | 16.00 | |
| 13,500 | CFM2063NI | M48 * 5.00 | 203.20 | 80.00 | 316.70 | 57.15 | 100.00 | 16.80 | |
| 22,000 | CFM2080NI | M64 * 6.00 | 266.00 | 98.00 | 400.00 | 76.00 | 290.00 | 40.00 | |
| 30,000 | CFM2081NI | M72 * 6.00 | 330.00 | 118.00 | 470.00 | 95.00 | 594.00 | 75.00 | |
| 51,000 | CFM2082NI | M90 * 6.00 | 370.00 | 177.00 | 561.00 | 102.00 | 663.00 | 120.20 | |
